Storage Compat

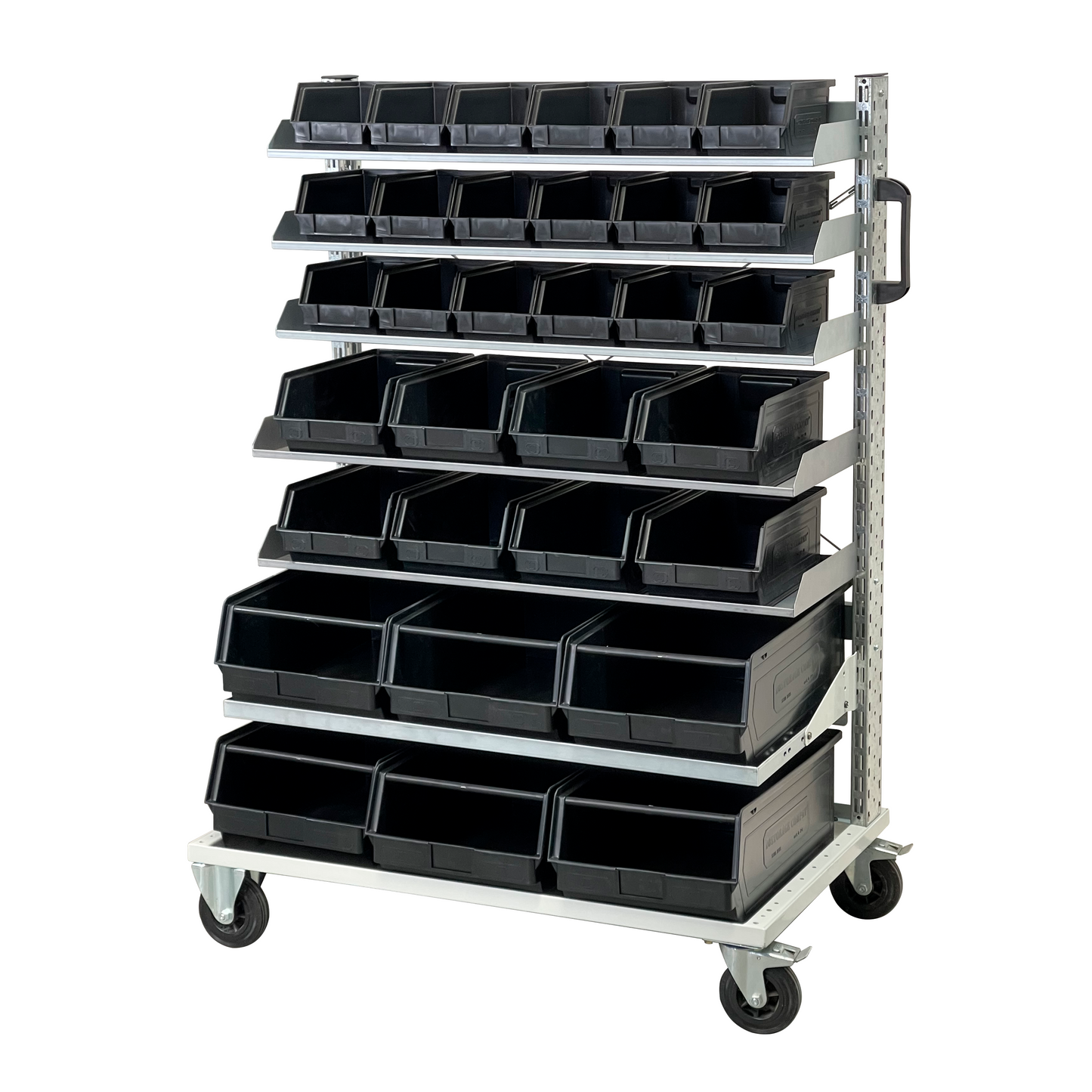

Modular Trolley with Drawers FLBB1015252

Product variants

Quantity

Code	Dimensions in inches
FLBB1015252	40.28 x 24.13 x 56.30 h

Technical Specifications	Qty
Metal cart.	1

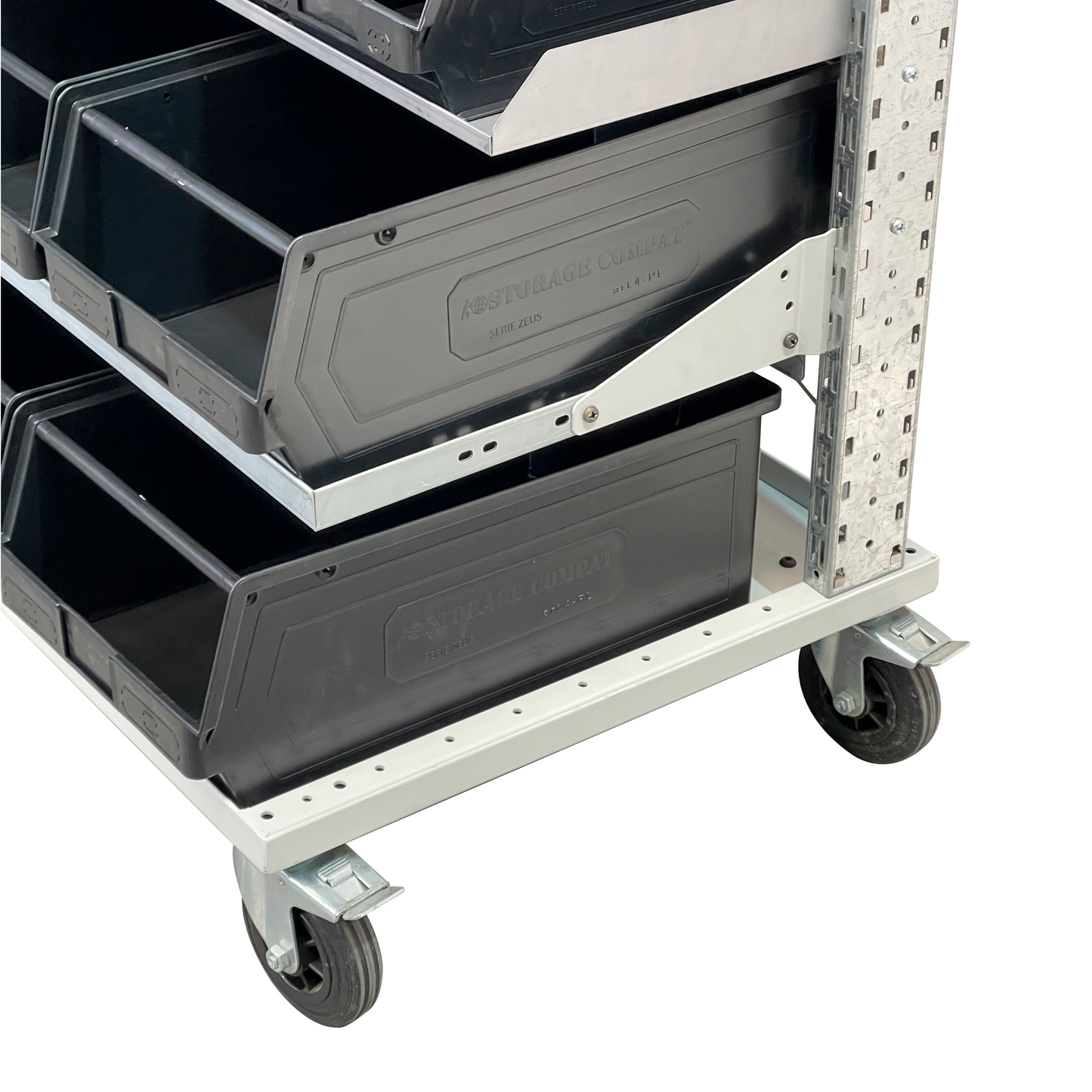

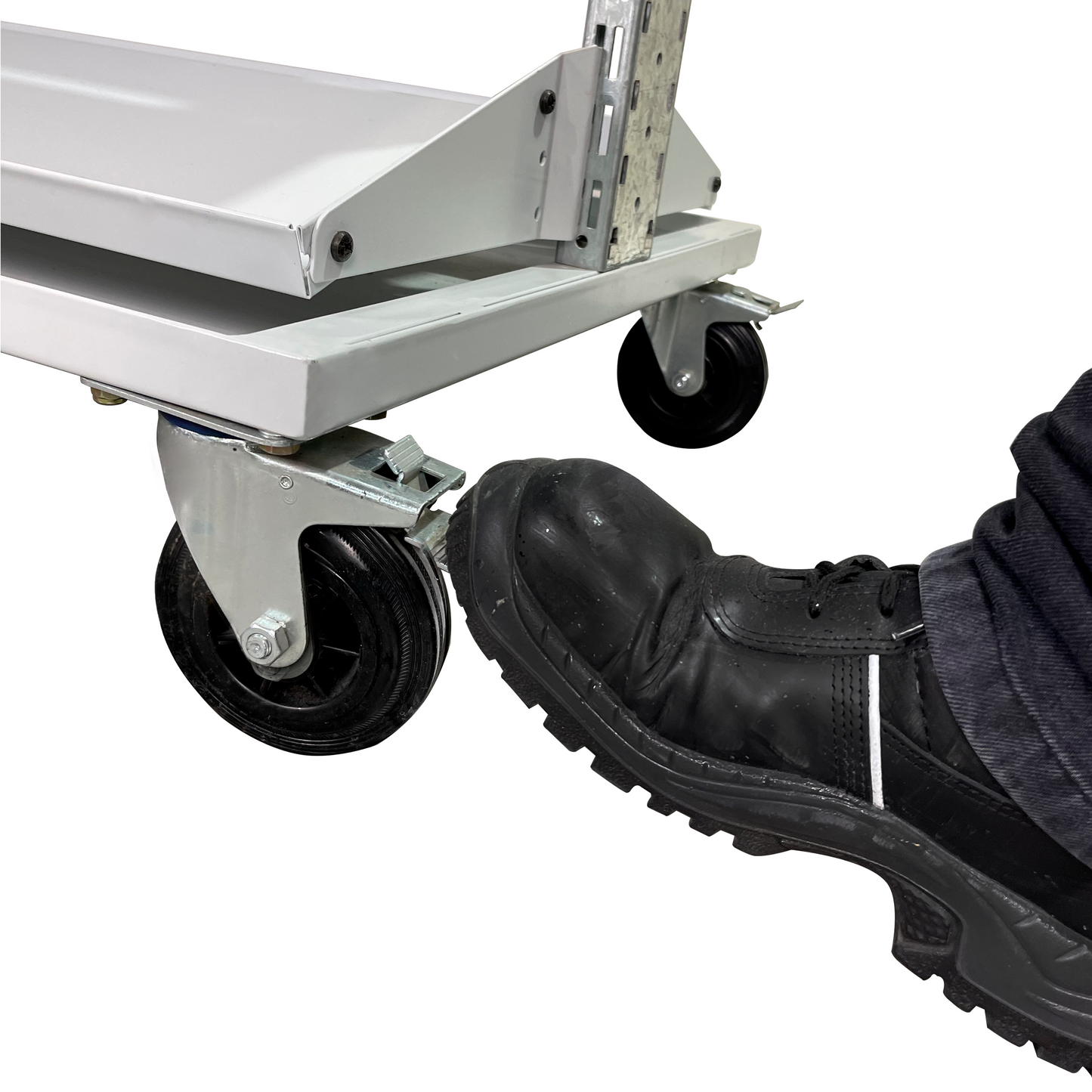

Swivel wheels with brake Ø 4.92 in. standard rubber.	2

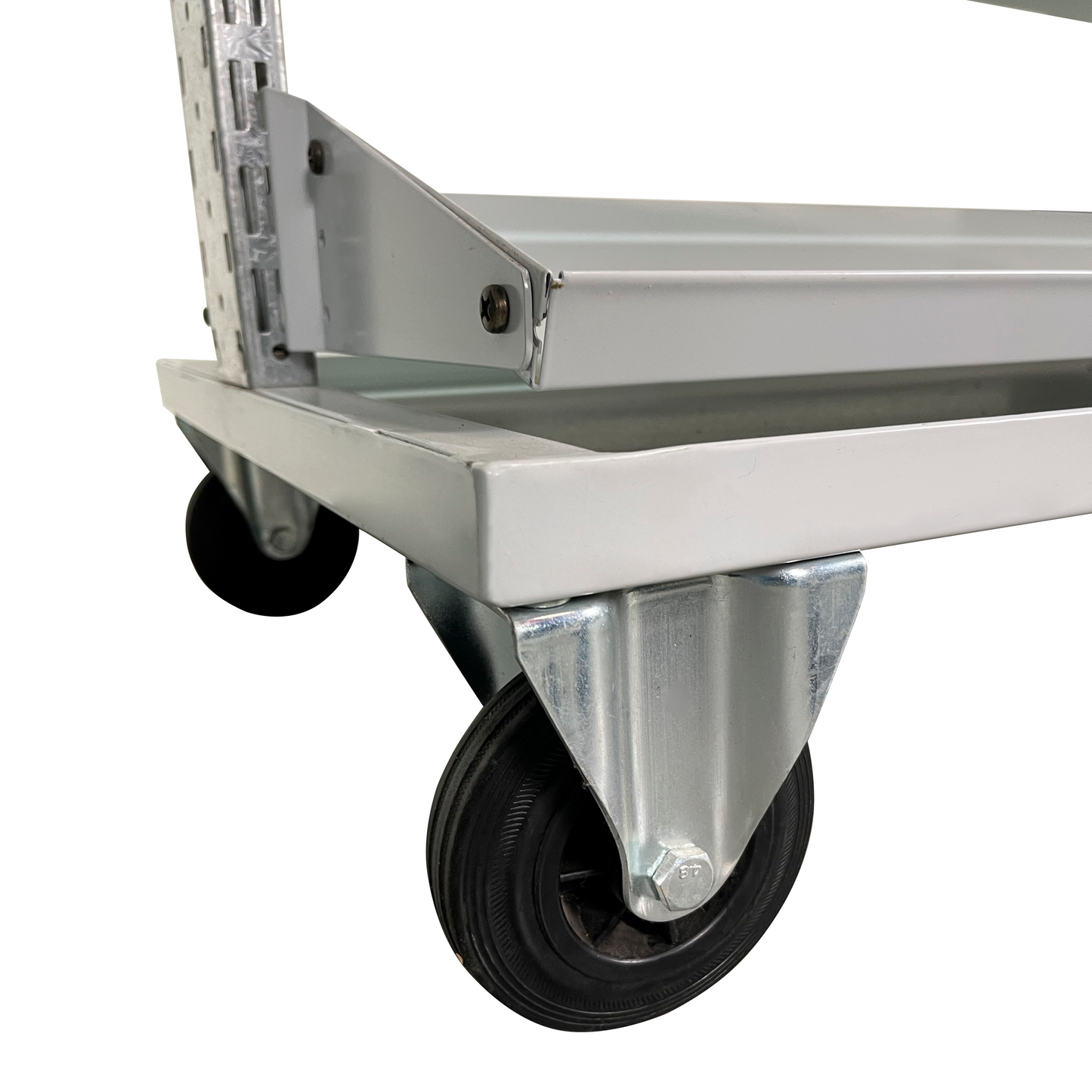

Fixed wheels Ø 4.92 in. standard rubber.	2

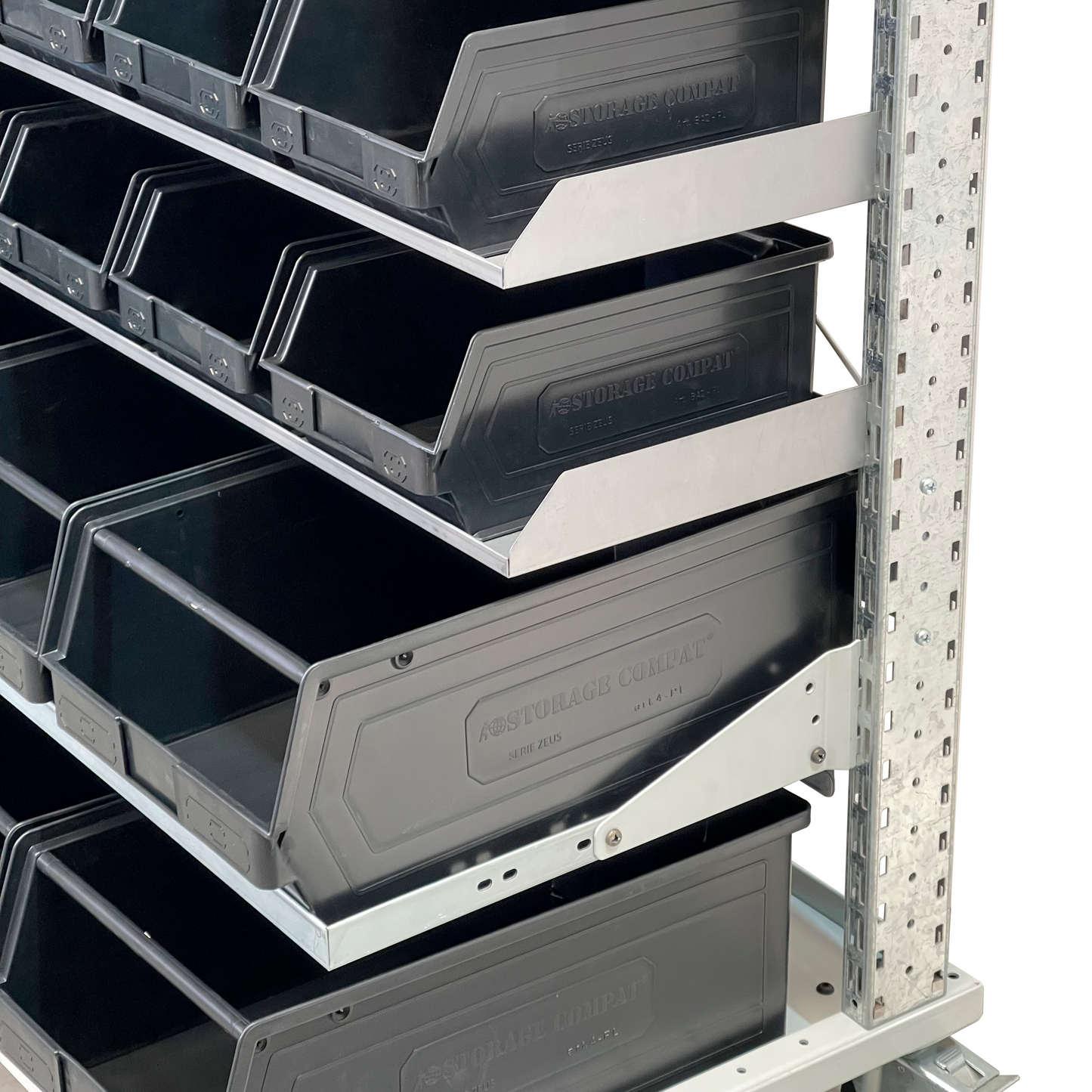

Fixed bracket for 6 bins 2Plz. Load capacity of 55.12 lbs.	3
Fixed bracket for 4 bins 3A2Plz / 3Plz. Load capacity of 55.12 lbs.	2
Tilting bracket. Load capacity of 110.23 lbs.	1
Plastic bins Zeus Series 2PLZ (dim. 9.06/7.87x5.51x5.12 h.in. cap. 1 gal.)	18
Plastic bins Zeus Series 3A2PLZ (dim. 13.78/11.81x7.87x5.71 h.in. cap. 2.48 gal.)	8
Plastic bins Zeus Series 4PLZ with crossbar (dim. 19.69/17.72x11.81x7.87 h.in. cap. 7.39 gal.)	6
Plastic handle.	1
Total load capacity (330.69 lbs. per side)	661.39 lbs.
Electrostatic powder coating in oven at 356°F, followed by the following phases: Phosphating, rinsing, drying, electrostatic powder application, polymerization in oven, paint thickness 35 to 80 microns, tolerance: δE 1.0 measured with 8° sphere spectrophotometer, CIE LAB formula, Obs.: 10°
